KTA
Key words:
Mid-infrared Crystals
Classification:
Product Details
Feature
An excellent NLO crystal developed mainly for optical parametric oscillators（OPO）
Large non linear coefficients, broad angular and temperature bandwidth
Lower absorption in the 3-4µm spectrum range than KTP
Resistant to high intensity laser radiation
Frequency doubling（SHG @1083nm - 3789nm）
Sum and difference frequency generation（SFG）/（DFG）
Product Parameter
| Dimension tolerance | ±0.05~0.10mm |
| Flatness | λ/10@633nm |
| Scratch/Dig | 10/5(MIL-PRF-13830B) |
| Parallelism | better than 20 arc sec |
| Perpendicularity | better than 5 arc min |
| Angle tolerance | <±0.2° |
| Coating | AR coating |
| Clear aperture | >90%central area |
| Transmitting wavefront distortion | less than λ/8@633nm |
Related Products

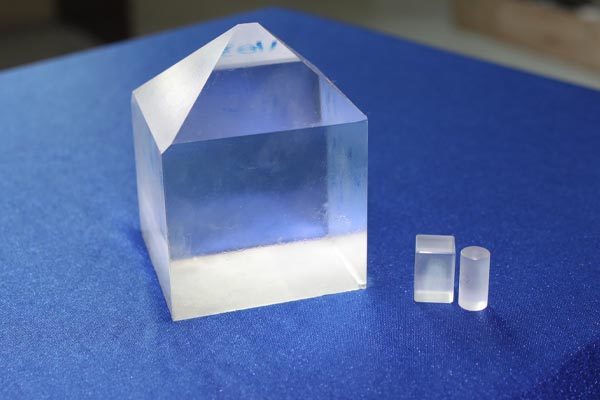

KDP/DKDP

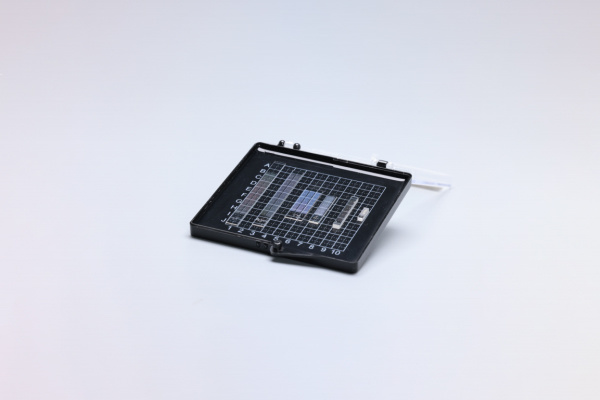

PPLN Waveguide

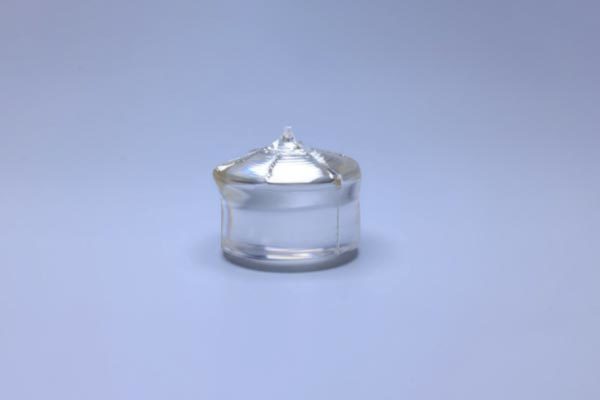

Lithium Niobate

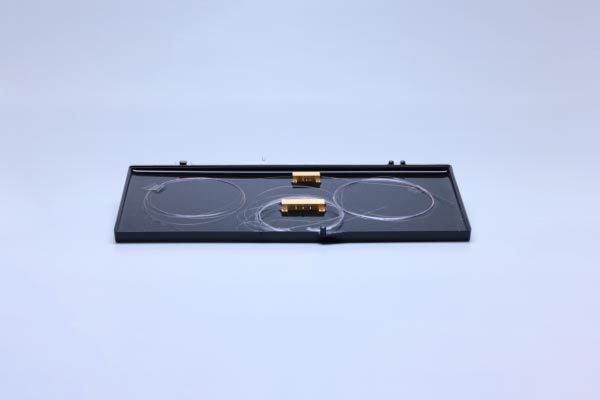

PPLN RPE Waveguide

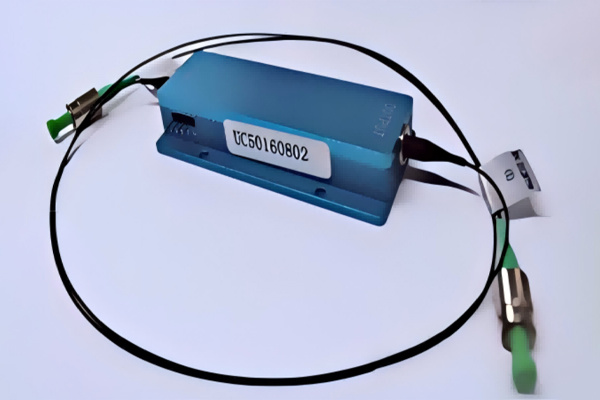

Multi-Function Integrated Optical Chip

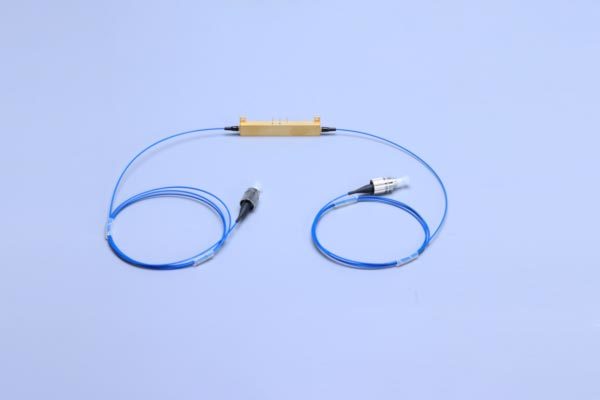

LN Intensity Modulator
