Multi-Function Integrated Optical Chip

As the core of fiber-optic gyroscopes (FOG), this LiNbO₃-based chip integrates: -Polarization control: High-extinction-ratio polarizer (>30 dB) -Signal modulation: Dual electro-optic phase modulators with Vπ·L < 3 V·cm -Beam splitting: Low-loss Y-junction (<0.2 dB imbalance) Fabricated via Annealed Proton Exchange (APE) waveguide technology, the MIOC delivers: -Radiation-hardened reliability: Operates from -55°C to +125°C (MIL-STD-883H compliant) -Navigation-grade stability: <0.01°/h bias instability for aerospace/defense inertial systems

Key words:

Lithium Niobate Crystal Components

Classification:

Lithium Niobate Crystal Components

WhatsApp:

+8619863680321

Email:

sales@kaxinoptic.com

Product inquiry

Applications

Fiber Optic Gyroscope(FOG)

Fiber Optic Current Sensor(FOCS)

Other Optic Sensing Application

Features

PM fiber input and output port

Low Vπ voltage

Polarization crosstalk≤-30dB

Low insertion loss

Push-pull electrode design

Unpackaged chip available

Long term stability

SPECIFICATIONS

	Paramaters	Unit	Spec.
Optical	Operating Wavelength	nm	820-850	1310	1550
	Insertion Loss	dB	≤3.5
	Split Beam Ratio		48/52~52/48
	Return Loss	dB	≥50
	Polarization Extinction Ratio	dB	≤-45
	PM Pigtail Crosstalk	dB	≤-20	≤-30	≤-30
	Intensity Modulation		≤0.3%
Electrical	Half Wave Voltage	V	≤4.0	≤4.5	≤5.5
	Electrode Type		Push-pull
	Electrode Voltage	V	≤15
	Bandwidth	MHz	≥300
Mechanical	Electrical Interface		3PIN
	Pigtail Type		Panda PM fiber,FC/PC connector

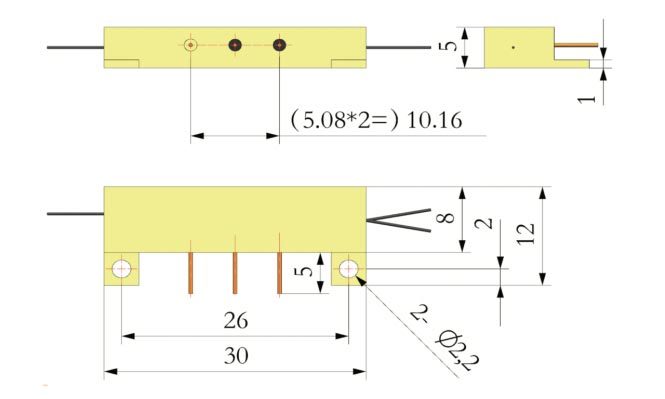

	Packaging Dimensions	mm	30×8×5,20×7×4
Environmental	Operating Temperature	℃	-45~+70
Environmental	Storage Temperature	℃	-55~+85
