PPLN Waveguide

Lithium niobate waveguide fabrication primarily utilizes proton exchange and metal diffusion. Ridge structures based on LNOI single-crystal thin films achieve high core-cladding refractive index contrast (>0.1), enabling strong optical confinement to amplify nonlinear effects (e.g., second-harmonic generation). The enhanced mode confinement coupled with superior optical damage thresholds (>1 GW/cm²) makes these waveguides ideal for high-power frequency conversion systems.

Key words:

Lithium Niobate Crystal Components

Classification:

Lithium Niobate Crystal Components

WhatsApp:

+8619863680321

Email:

sales@kaxinoptic.com

Product inquiry

Applications

High Power Single Frequency Laser

Quantum Key Distribution System

Laser Radar

Optical Sensing

Key Features

Available for SHG/SFG/DFG nonlinear frequency conversion

High efficiency coupling between optical fiber and waveguide

High conversion efficiency

High damage threshold

High long-term stability

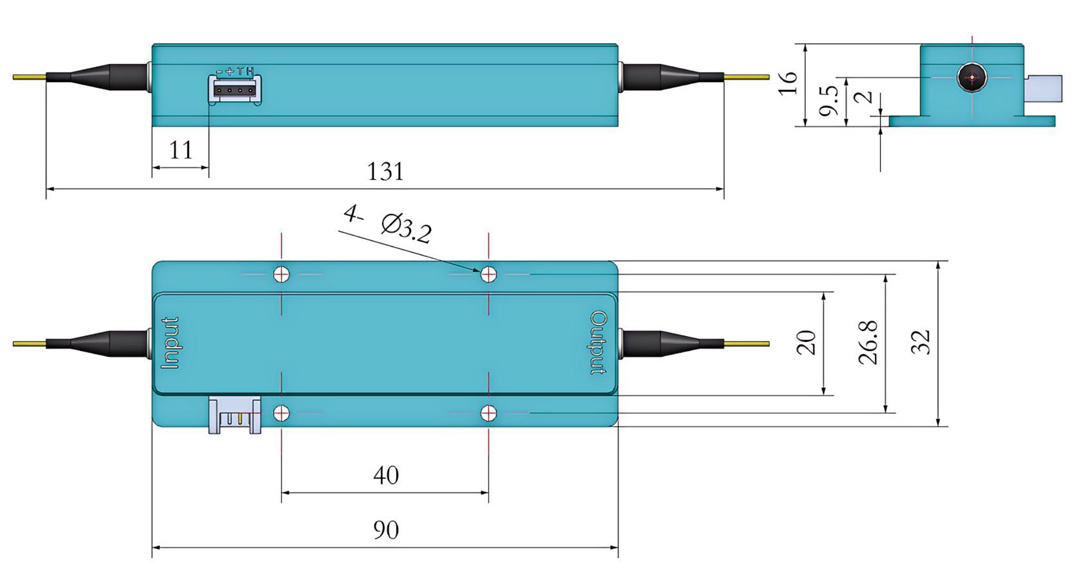

Specifications

	Paramaters	Unit	Spec.
Optical	Conversion Type		SHG
	Input Wavelength	nm	1560
	Output Wavelength	nm	780
	Pump Power	W	5.5
	Output Power	W	2
	Input Fiber		PM780/No connector
	Output Fiber		PM1550/No connector
	Output Polarization State		Linear@vertical axis
Electrical	Thermoelectric Cooler		4.4V,1.5A maximum,Qc=4.1W
Electrical	NTC Impedance@25C	kΩ	10
Environmental	Operating Temperature	℃	+10~+35
Environmental	Storage Temperature	℃	-20~+70

Output Power Curve Of High Power 1560nm Shg Wg

Product List

Nonlinear Interaction	Type	Seed(nm)	Pump(nm)	Output (nm)	Temperature TuningRange(C)	Fiber Connector	Input Optical Fiber Type	Output Optica Fiber Type
SHG	PPLN-RWG-SHG1560-P8-P4-H	1560		780	20-70	FC/APC	PM1550	PM780
	PPLN-RWG-SHG1064-P6-P2-H	1064		532	20-70	FC/APC	PM980	PM460
	PPLN-RWG-SHG1396-P9-H	1396		698	20-70	FC/APC	PM1310-125- 16/250_Y
SFG	PPLN-RWG-SHG2100-P8-P6	2100		1050	20-70	FC/APC	PM1550	PM980
	PPLN-RWG-SFG15501070-P8-P3-H	1550	1070	633	20-70	FC/APC	PM1550	PM630
	PPLN-RWG-SFG1550778-P10-P3-H	1550	778	778	20-70	FC/APC	PM1550-125- 18/250_Y	PM460
