LN Wide Bandwidth Phase Modulator

LiNbO₃ wideband phase modulators employ microelectronics fabrication processes, utilizing either annealed proton exchange (APE) or Ti-diffusion waveguide technologies. Supporting both single-polarization and birefringent operation modes, these devices feature traveling-wave electrode configurations optimized for high-frequency performance across 1-30 GHz bandwidths. The modulators deliver exceptional reliability with robust temperature stability, maintaining consistent operation under extended thermal variations.

Key words:

Lithium Niobate Crystal Components

Classification:

Lithium Niobate Crystal Components

WhatsApp:

+8619863680321

Email:

sales@kaxinoptic.com

Product inquiry

Applications

Side bands generation

Interferometric sensing

Frequency shifting/broadening

Quantum key distribution

Features

High electro-optical bandwidth

PM fiber input and output port

Low Vπt voltage

Low insertion loss

Long term stability

Small packaging and lightweight

SPECIFICATIONS

	Paramaters	Unit	Value
Optical	Operating Wavelength	nm	1310	1550
	Insertion Loss	dB	≤4.5
	Maxium Optical Input Powe	mW	100(APE)
			50(Ti)
	Polarization Extinction Ratio	dB	≤-30(APE)
			-20(Ti)
	Retumn Loss	dB	≤45
	Intensity Modulation		≤0.2%
Electrical	Half Wave Voltage	V	≤4	≤5
	Bandwidth(S21)	GHz	10GHz
			20GHz
			30GHz
	Electrical Interface		SMA(10GHz)
			V connector(20GHz/30GHz)

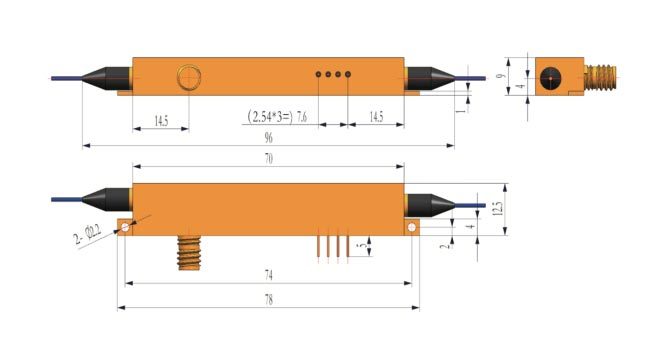

Mechanical	Pigtail Type		Panda PM fiber,FC/PC connector
	Packaging Dimensions	mm	70×12.5×9
Environmental	Operating Temperature	℃	-45~+70
	Storage Temperature	℃	-55~+85
